Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

Xinxiang AAREAL Machine Co.,Ltd

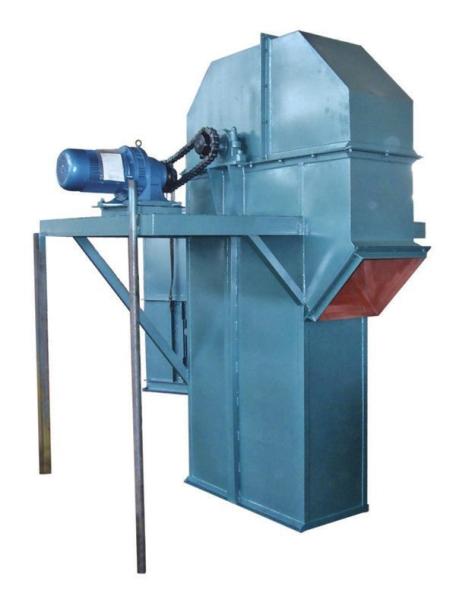

Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

  • 1
  • 2

Brand Name : AAREAL

Model Number : TD

Certification : ISO9001:2015

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5 sets per month

Delivery Time : 20~30 work days after order confirmed

Packaging Details : Plastic film for the machine, and plywood wooden case for the spare parts

Lifting Component : high strength rubber conveyor belt

Lifting Height : max. 40 meters

Bucket Type : Q (shallow bucket), H (arc bottom bucket), zh (medium and deep bucket), sh (deep bucket)

Characteristics : large conveying capacity, simple structure, easy installation, easy to adjust, repair and maintenance

Purpose : used for vertical conveying of powdery, granular, and small, low-grinding materials with a bulk density ≤1.5 t/m³, and temperature ≤60℃

Applicable Materials : grain, coal, sand, coke, cement, crushed ore etc.

Contact Now

Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

Application of Belt Type Bucket Elevators:

The belt type bucket elevator is suitable for vertical conveying powder, granular and small block less abrasive bulk material, such as grain, corn, coal, cement, crushed ore etc. The lift height can reach 40 meters. Material temperature is less than 60℃. Compared with the conventional D-type bucket elevator, high conveying efficiency, a variety of bucket types, should be first choice.

1. Large conveying capacity. Compared with D type, the conveying capacity of TD type with the same bucket width is nearly doubled.
2. The traction parts adopt high-strength rubber conveyor belt with high tensile strength and long service life.
3. Simple structure, easy installation, easy adjustment, repair and maintenance.

Features of Belt Type Bucket Elevators:

1. Small driving power

The belt type bucket elevator adopts inflow type feeding and gravity induction type discharging. It uses intensive arrangement large-capacity hopper to convey. There is no no returning and excavating phenomenon when lifting the material. Therefore, the reactive power is less.

2. Broad lifting range

This belt type bucket elevator has few requirements to the material kinds and characteristics. It can not only lift the powdery, granular and ordinary bulk materials, but also can lift the strong abrasive or grinding materials. Good sealing and less environmental pollution

3. Good running reliability

Advanced design principle and machining method ensures the reliability of machine operation. Trouble-free time is more than 20000 hours. Bucket elevator runs smoothly, thus can achieve high lifting height.

4. Long service life

The belt type bucket elevator adopts inflow type feeding. No need to dig material with the bucket. Extrusion and collision between material rarely occur. The machine is designed to ensure that the material in the feeding and unloading will not scattered, which prevents abrasive wearing.

Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / AggregatesBelt Type Industrial Conveyor Systems Bucket Elevators For Cement / AggregatesBelt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

Driving Configuration Table of Belt Type Bucket Elevators:

Model Transmission Device Model Power (KW) Motor Reducer Model
Right Transmission Device Left Transmission Device
TD100 C1 1.5 Y100L-6 250-Ⅵ-3Z 250-Ⅵ-4Z
C2 2.2 Y112M-6
TD160 C1 3 Y132S-6 350-Ⅵ-3Z 350-Ⅵ-4Z
C2 4 Y132M1-6
C3 5.5 Y132M2-6 400-Ⅵ-3Z 400-Ⅵ-4Z
C4 7.5 Y160M-6
TD250 C1 5.5 Y132M2-6 400-Ⅵ-3Z 400-Ⅵ-4Z
C2 7.5 Y160M-6
C3 11 Y160L-6 500-Ⅵ-3Z 500-Ⅵ-4Z
C4 15 Y180L-6
TD315 C1 7.5 Y160M-6 400-Ⅵ-3Z 400-Ⅵ-4Z
C2 11 Y160L-6 500-Ⅵ-3Z 500-Ⅵ-4Z
C3 15 Y180L-6
C4 18.5 Y200L1-6 650-Ⅵ-3Z 650-Ⅵ-4Z
TD400 C1 15 Y180L-6 500-Ⅵ-3Z 500-Ⅵ-4Z
C2 18.5 Y200L1-6 650-Ⅵ-3Z 650-Ⅵ-4Z
C3 22 Y200L2-6
C4 30 Y225M-6
TD500 C1 18.5 Y200L1-6 650-Ⅵ-3Z 650-Ⅵ-4Z
C2 22 Y200L2-6
C3 30 Y225M-6
C4
TD630 C1 22 Y200L2-6 650-Ⅵ-3Z 650-Ⅵ-4Z
C2 30 Y225M-6

Technical Parameter Table of Belt Type Bucket Elevators:

Model TD160 TD250 TD315 TD400
Bucket Type Q h zD Sd Q h zD Sd Q h zD Sd Q h zD Sd
Capacity (m3/h) 5.4 9.6 9.6 16 12 22 23 35 17 30 25 40 24 46 41 66
Bucket Width (mm) 160 250 315 400
Bucket Volume (L) 0.5 0.9 4.2 1.9 1.3 2.2 3.0 4.6 2 3.6 3.8 5.8 3.1 5.6 5.9 9.4
Pitch of Buckets (mm) 280 350 360 450 400 500 480 560
Belt Width (mm) 200 300 400 500
Bucket Speed (m/s) 1.4 1.6 1.6 1.8
Material Maximum Block Size (mm) 25 35 45 55
Model TD500 TD630 TD160 TD250 TD350 TD450
Bucket Type Q h zD Sd h zD Sd Q S Q S Q S Q S
Capacity (m3/h) 38 70 58 92 85 89 142 4.7 8 18 22 25 42 50 72
Bucket Width (mm) 500 630 160 250 350 450
Bucket Volume (L) 4.8 9 9.3 15 14 14.6 23.5 0.65 1.1 2.6 3.2 7 7.8 14.5 15
Pitch of Buckets (mm) 500 625 710 300 400 500 640
Belt Width (mm) 600 700 200 300 400 500
Bucket Speed (m/s) 1.8 2 1 1.25 1.25 1.25
Material Maximum Block Size (mm) 60 70 25 35 45 55
Notes:

1. Bucket volume in the table is the calculated value. The conveying capacity is calculated according to the filling coefficient of 0.6.

2. The uses of bucket are as follows.

Shallow bucket: conveying materials in damp, easy to agglomerate, difficult to throw. e.g. wet sand, wet coal etc.

Deep bucket: conveying dry, loose materials , and materials easy to throw. e.g. cement, coal briquette, gravel, quartz etc.

Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

TD Belt Bucket Elevator NE Plate Chain Bucket Elevator TH Ring Chain Bucket Elevator
